The database
In this tutorial we will modify the API module to save values to the Allsky database
Warning
Please ensure you have read the simple tutorial before this one as the basics covered in the simple tutorial will not be covered
Saving values to the database, for example to using in charts, is accomplished by modifying the extradata section in the meta_data
Start by taking the API example and renaming everything to example3 and add the humidity variable
import requests
from typing import Any, Dict, Optional, Tuple
import allsky_shared as allsky_shared
from allsky_base import ALLSKYMODULEBASE
class ALLSKYEXAMPLE3(ALLSKYMODULEBASE):
meta_data = {
"name": "Allsky Example Database Module",
"description": "A simple example module for Allsky to save data to the database.",
"module": "allsky_example3",
"version": "v1.0.0",
"group": "Data Capture",
"events": [
"periodic"
],
"enabled": "false",
"experimental": "true",
"testable": "true",
"centersettings": "false",
"extradatafilename": "allsky_example3.json",
"extradata": {
"values": {
"AS_EXAMPLE3_TEMP": {
"name": "${EXAMPLE3_TEMP}",
"format": "{dp=2|deg}",
"sample": "",
"group": "User",
"description": "Temp from Openweather API",
"type": "number"
},
"AS_EXAMPLE3_HUMIDITY": {
"name": "${EXAMPLE3_HUMIDITY}",
"format": "{dp=0|per}",
"sample": "",
"group": "User",
"description": "Humidity from Openweather API",
"type": "number"
}
}
},
"arguments":{
"owapikey": "",
"units": "metric"
},
"argumentdetails": {
"owapikey": {
"required": "false",
"description": "API Key",
"secret": "true",
"help": "Your Open Weather Map API key."
},
"units" : {
"required": "false",
"description": "Units",
"help": "Units of measurement: standard, metric, or imperial.",
"type": {
"fieldtype": "select",
"values": "standard,metric,imperial"
}
}
},
"businfo": [
],
"changelog": {
"v1.0.0" : [
{
"author": "Alex Greenland",
"authorurl": "https://github.com/allskyteam",
"changes": "Initial Release"
}
]
}
}
def _get_weather(
self,
lat: float,
lon: float,
api_key: str,
units: str = "metric",
timeout: int = 10
) -> Tuple[Optional[Dict[str, Any]], Optional[str]]:
"""
Fetch current weather from OpenWeather API.
Returns:
(data, None) on success
(None, error_message) on error
"""
if not api_key:
return None, "API key is required"
url = "https://api.openweathermap.org/data/2.5/weather"
params = {
"lat": lat,
"lon": lon,
"units": units,
"appid": api_key,
}
try:
response = requests.get(url, params=params, timeout=timeout)
except requests.exceptions.Timeout:
return None, "Request timed out"
except requests.exceptions.ConnectionError:
return None, "Network connection error"
except requests.exceptions.RequestException as e:
return None, f"Unexpected request error: {e}"
try:
data = response.json()
except ValueError:
return None, "Invalid JSON response from API"
if not response.ok:
message = data.get("message", f"HTTP error {response.status_code}")
return None, f"API error {response.status_code}: {message}"
if data.get("cod") != 200:
return None, f"API error: {data.get('message', 'Unknown error')}"
required_keys = ["weather", "main", "wind", "dt", "name"]
missing = [k for k in required_keys if k not in data]
if missing:
return None, f"Malformed response, missing keys: {missing}"
return data, None
def run(self) -> str:
result = ""
extra_data = {}
api_key = self.get_param("owapikey", "", str)
units = self.get_param("units", "", str)
lat, lon = allsky_shared.get_lat_lon()
data, error = self._get_weather(lat, lon, api_key, units)
if error:
result = f"ERROR: Failed to obtainweather data {error}"
else:
extra_data["AS_EXAMPLE3_TEMP"] = float(data["main"]["temp"])
extra_data["AS_EXAMPLE3_HUMIDITY"] = float(data["main"]["humidity"])
allsky_shared.save_extra_data(self.meta_data['extradatafilename'], extra_data, self.meta_data['module'], self.meta_data['extradata'])
result = f"INFO: Data read from Openweather API and variables created"
self.log(4, result)
return result
def example3(params, event) -> str:
allsky_example3 = ALLSKYEXAMPLE3(params, event)
result = allsky_example3.run()
return result
def example3_cleanup():
moduleData = {
"metaData": ALLSKYEXAMPLE3.meta_data,
"cleanup": {
"files": {
ALLSKYEXAMPLE3.meta_data['extradatafilename']
},
"env": {}
}
}
allsky_shared.cleanupModule(moduleData)
Next we modify the extradata section of the meta_data to tell Allsky how to manage the extra data in the database
Change the extradata section to the following
"extradata": {
"database": {
"enabled": "True",
"table": "allsky_example3",
"include_all": "true",
"pk": "id",
"pk_type": "int",
"time_of_day_save": {
"day": "always",
"night": "always",
"nightday": "always",
"daynight": "always",
"periodic": "always"
}
},
"values": {
"AS_EXAMPLE3_TEMP": {
"name": "${EXAMPLE3_TEMP}",
"format": "{dp=2|deg}",
"sample": "",
"group": "User",
"description": "Example3 Temp from Openweather API",
"type": "number"
},
"AS_EXAMPLE3_HUMIDITY": {
"name": "${EXAMPLE3_HUMIDITY}",
"format": "{dp=0|per}",
"sample": "",
"group": "User",
"description": "Example3 Humidity from Openweather API",
"type": "number"
}
}
}
This adds the database section that will
- Create a table called
allsky_example3 - Include ALL of the data from the
valuessection i.e. all of the extra data - use a sequential primary key
- Allways save data for each pipeline

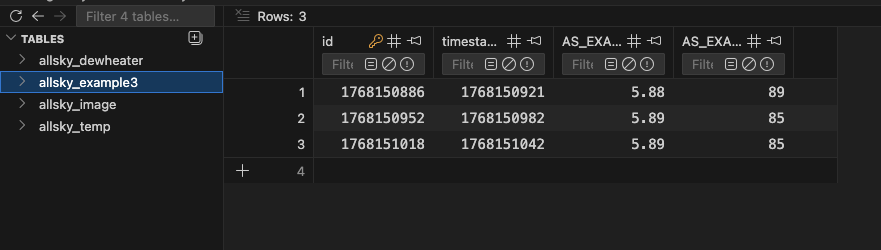

The resulting database table

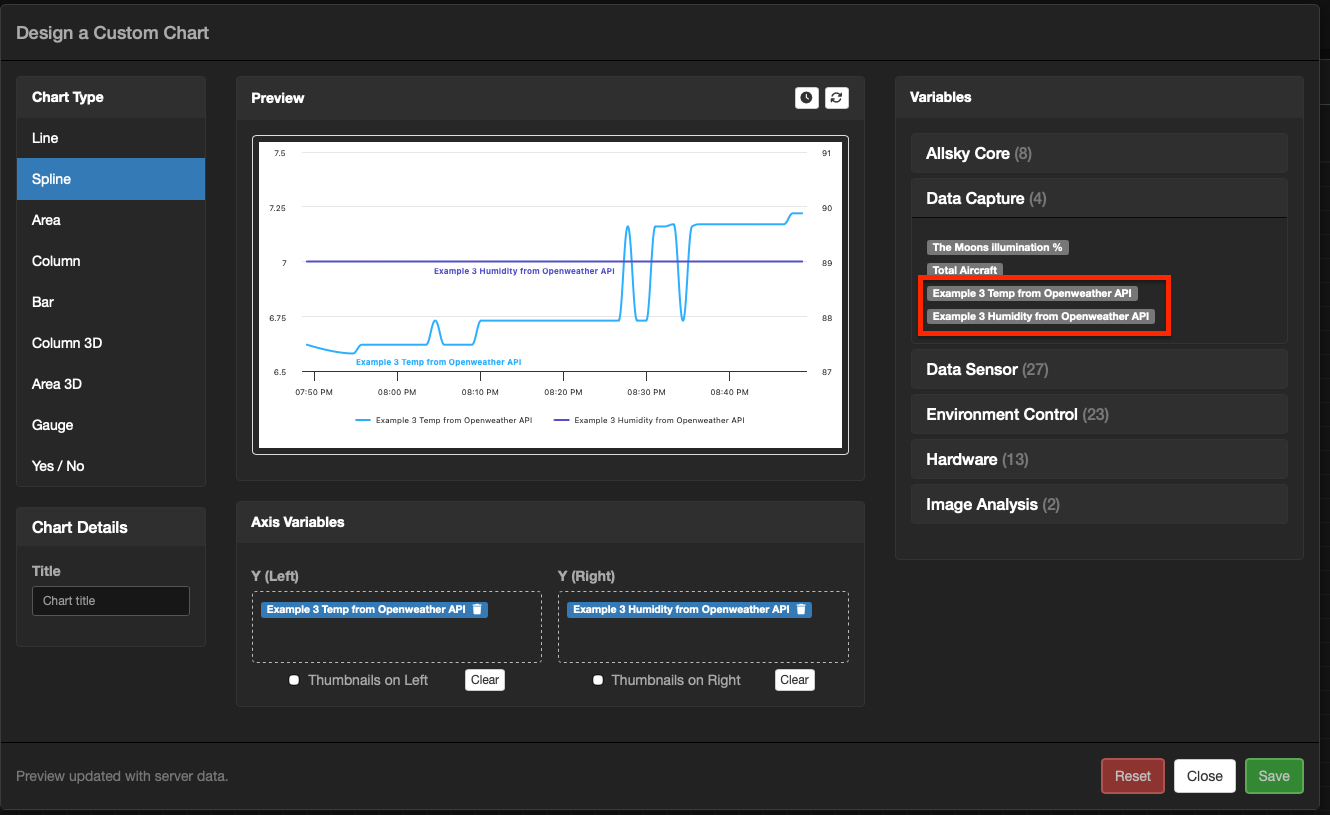

The fields available when creating a custom chart
There may be instances where you do not want to save all of the data to the database. If we only wanted to save the temperature and not the humidity we would change the `metadata section as follows
"extradata": {
"database": {
"enabled": "True",
"table": "allsky_example3",
"include_all": "false",
"pk": "id",
"pk_type": "int",
"time_of_day_save": {
"day": "always",
"night": "always",
"nightday": "always",
"daynight": "always",
"periodic": "always"
}
},
"values": {
"AS_EXAMPLE3_TEMP": {
"name": "${EXAMPLE3_TEMP}",
"format": "{dp=2|deg}",
"sample": "",
"group": "User",
"description": "Example 3 Temp from Openweather API",
"type": "number",
"dbtype": "float",
"database": {
"include" : "true"
}
},
"AS_EXAMPLE3_HUMIDITY": {
"name": "${EXAMPLE3_HUMIDITY}",
"format": "{dp=0|per}",
"sample": "",
"group": "User",
"description": "Example 3 Humidity from Openweather API",
"type": "number"
}
}
}
This modfifies the meta_data to
- Not add every field to the database automatically
- Sets the database type for the Temperature field
- Saves the temperature field to the database
- Since the Humidity field has no database settings it will not be saved

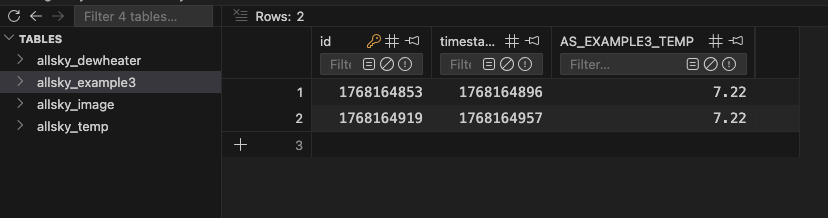

The resulting database table when only saving one value
Database RulesΒΆ
- Only store numeric values, text values are of little use at present
- Be mindful of data volumes, don't store huge amounts of data
- Ensure your plugin provides the db config purge information
